Bending plastics – precise, simple, Made in Germany
Since 1999✓ For PMMA, PETG, PVC & PC and more✓ Manual & automatic✓ Contract bending from small quantitiesManual plastic bending
The right solution for every requirement.

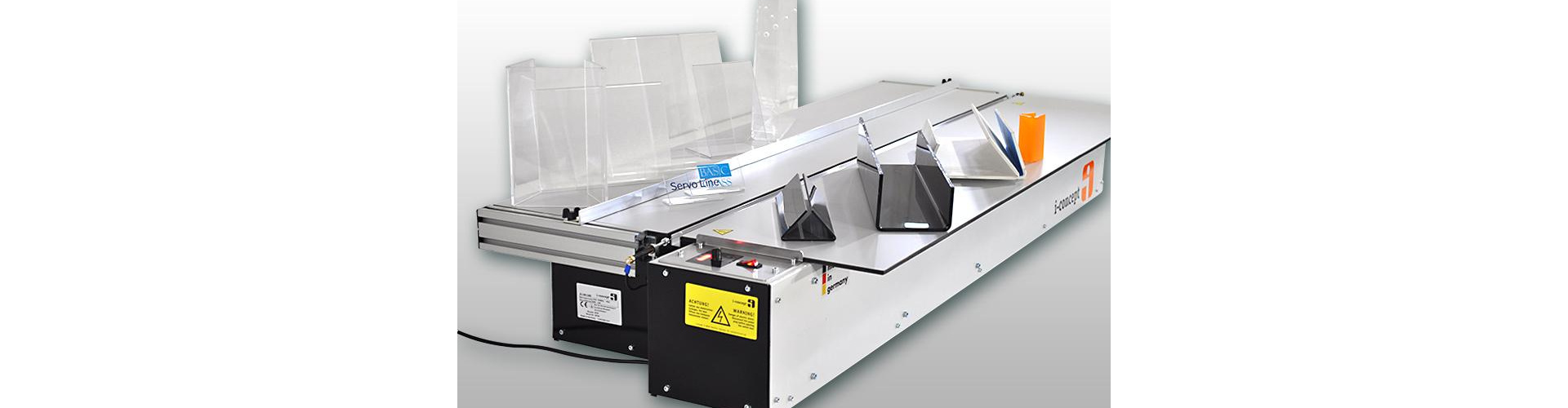

IC-100
Simple entry-level machine with everything you need for professional processing of plastic sheets. Heats 2 mm PMMA in just 20 seconds.
- Material thickness 0.4–6 mm
- Radii 0.2–5 mm
- Working widths 1300 / 2200 mm
<>

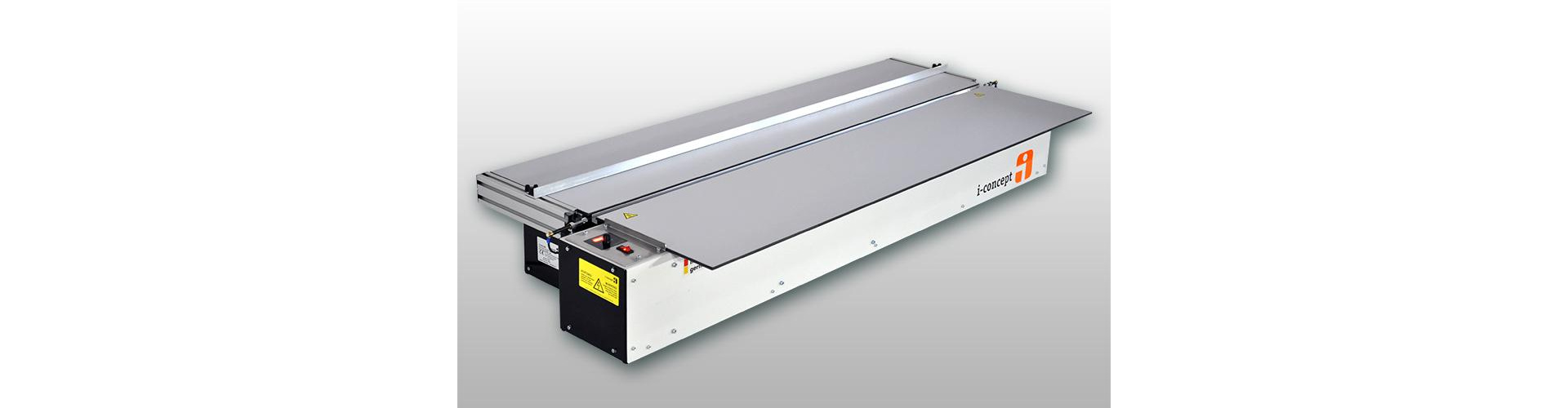

IC-200
Designed for thicker materials and Makrolon® (PC) up to 12 mm – with top and bottom heating, also for larger bending radii.
- Material thickness 0.4–15 mm
- Radii 0.2–10 mm
- Working widths 1300 / 2200 mm
<>

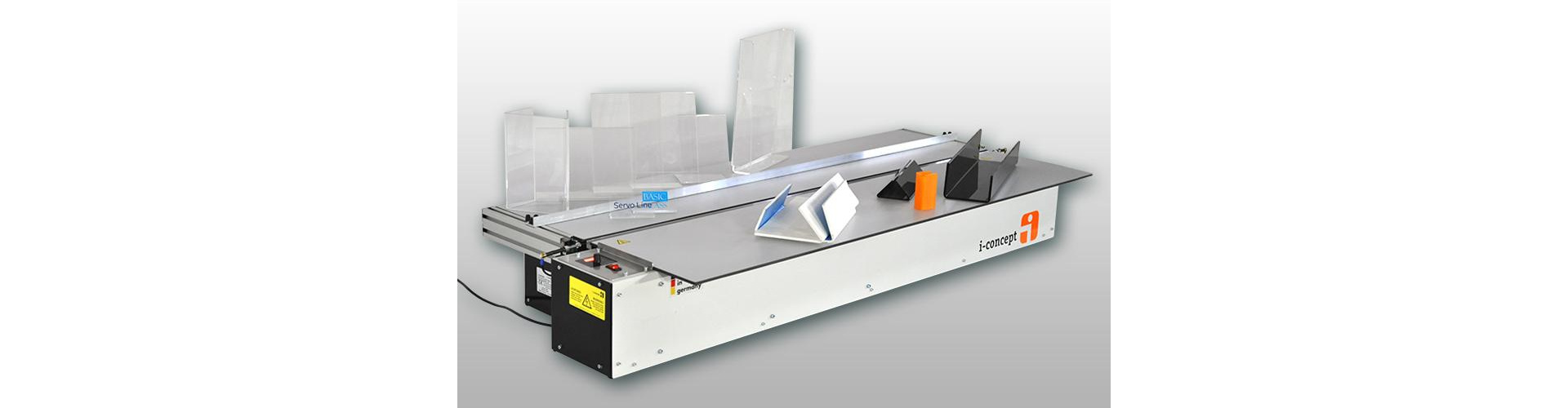

IC-1
Four freely positionable heating bars for up to four bends at once. Modular design, MAX version with top heating.
- Material thickness 1–6 mm
- Radii 0.2–5 mm
- Working widths 1300 / 2200 mm
<>
IC-3
For precise bending of thin films – heating time in 0.01 s steps, foot switch and counter. Film welding up to 2 mm is also possible.
- Material thickness 0.2–1.5 mm
- Tolerance below 0.05 mm
- Working widths 650 / 1300 mm
Start your project – find the right machine
Get a no-obligation consultation. We will develop the right solution for your plastics processing.
Automatic plastic bending
Clamping, heating and bending – fully automatic and precisely reproducible.
IC-7
The IC-7 clamps the material, heats and bends it automatically. All automatic functions can be activated separately – very simple operation and highly accurate reproducibility of results.
- Material thickness up to 20 mm
- PMMA, SAN, polycarbonate, PVC and all other thermoplastics
- Bending angle 0–100°
- Working widths 1300 / 2200 / 3000 / 4100 mm
Film bending machines
Precise bending and welding of thin plastic films.
<>IC-3
For precise bending of thin films – with heating time in 0.01-second steps, foot switch and counter. Film welding up to 2 mm is also possible.
- PVC and PETG 0.2–1.5 mm
- Lexan® PC up to 1.0 mm
- PS 0.3–1.5 mm
- Working widths 650 / 1300 mm
Contract manufacturing
& services
You supply the material, we do the bending – from small quantities to large-scale production. From retail displays to technical films that hardly anyone else dares to work with.
Presentation at the point of sale
Bent plastic parts for retail, trade fairs and shop fitting – dimensionally accurate and in consistent quality, even in very large quantities.
POPDisplays & stands
For professional product presentation in retail and at trade fairs.
POSPrice tag & shelf profiles
Cleanly bent profiles in consistent quality – ideal for large series.
POS · POPBrochure & info holders
Holders and stands that place information exactly where customers make decisions.
Where others give up
Some high-performance films are considered almost impossible to bend: extremely heat-resistant and impossible to form cleanly with conventional methods. We have developed a way to do it.
High-temperature filmKapton® polyimide film
Kapton® is one of the highest-performing films available – used for insulation in electronics, electrical engineering and aerospace. The very properties that make it so valuable also make it difficult to process. We still bend it precisely.
- Insulating and protective parts for electronics and electrical engineering
- Clean, reproducible bends
- From prototype to series production
Special materialsOther high-performance films
A material nobody has been able to process so far? We are happy to check whether and how we can bend it.
Technical partsCovers & insulating parts
Precisely fitting parts for machines, devices and technical applications.
Why contract manufacturing with us
We bend on machines we develop ourselves – so we know every setting and get the best out of your material.
Ready for your project?
Briefly tell us what needs to be bent – we will get back to you personally with an individual quote.

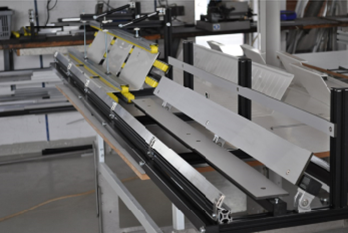

Special machinery for plastics processing
Not every application can be realised with standard machines. We develop custom special-purpose machines for the precise and efficient processing of thermoplastics – from planning, design and manufacturing through to commissioning.
Custom machine solutions
Special-purpose machines built exactly to your production requirements – from the idea to the finished system.
Optimised production processes
Tailored automation increases efficiency, precision and throughput in your production.
Integration into existing systems
Our machines can be integrated seamlessly into existing production lines and automation processes.
A wide range of plastics
Suitable for numerous thermoplastic materials such as acrylic, PETG, PVC or polycarbonate.
High production output
Automated systems enable large quantities and reproducible quality in series production.
Development, construction and support
We support your project through to commissioning and provide training and technical support.
Your special-purpose machine starts with an idea
Tell us your requirements – we will develop the right solution for your production.
About i-concept
Mechanical engineering from Steinfurt, Germany – since 1999.
Franz Josef MünnichOwnerSince 1999, i-concept has stood for high-quality machine solutions for plastics and film processing. With our team's combined experience of more than 60 years in mechanical engineering, we develop bending machines that work precisely, reliably and economically.
Our experience ranges from sheet metal working and steel construction to the processing of non-ferrous metals and plastics – complemented by expertise in electronics, pneumatics, and linear and vacuum technology.
In addition to standard machines, we develop custom special solutions. Our goal: a suitable and reliable solution for every requirement.
Harkortstraße 22, 48565 Steinfurt, Germany
